For Adhesive & Non Adhesive tapes, water blocking tapes, BOPP tapes, identity tapes, Carry Handle Tapes, Micro films, Polyester films, Masking tapes, security tapes, Automotive tapes, Packaging tapes, Construction tapes, Fabric tapes, Holographic films and tapes, Photo tapes, Aluminium tapes

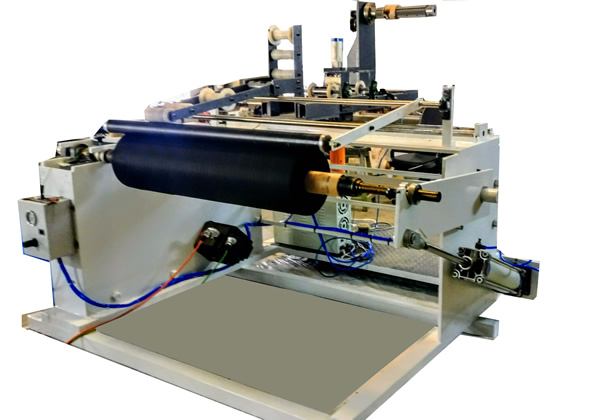

Model Excellent 303
- Best suitable for Jumbo spooling of Water Blocking tapes, Carry Handle tapes.
- Cantilever arm with pneumatic movement
- Electronic traverse mechanism with servo motor, managed with Digital HMI & PLC
- Finished spool upto 1000mm Length x 800mm Diameter
- Able to hold weight upto 600 Kgs
- Winding shaft driven with 27Nm servo motor
- Unwinding mechanism with braking for tension control
- Machine able to wind with even tension through synchronized
- Servo motor speed programming.

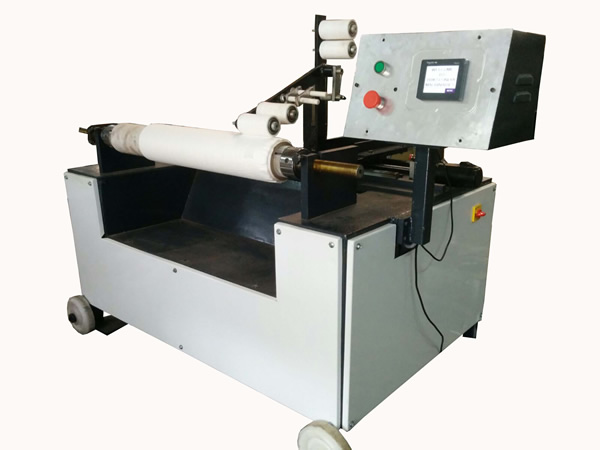

Model Excellent 202
-
- Best suitable for All adhesive and non adhesive tapes including polyester tapes
- Both sides clamping mechanism
- VFD controller
- Electronic traverse mechanism with servo motor, managed with Digital HMI & PLC
- Finished spool Dimensions upto 750mm Traverse x 600mm Diameter
- Winding shaft motor 2.2 Kw 50Hz 440V/220V
- Unwinding Mechanism with mechanical spring clutch

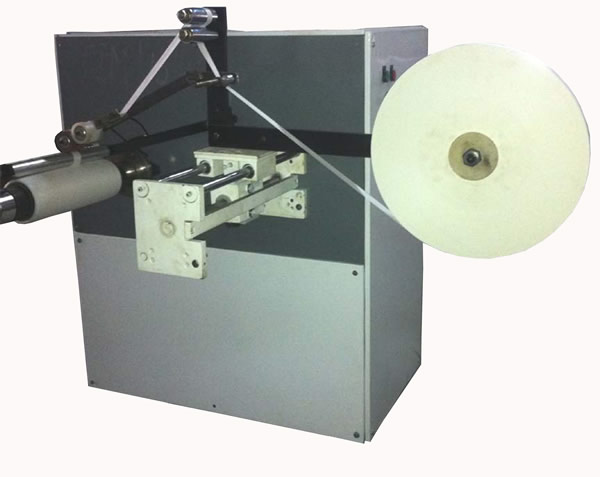

Model Excellent 101 TM
- Mechanical traverse with adjustable pitch and length
- Unwinding mechanism with mechanical brakes
- Variable speed control
- Mechanical tension synchronization
- Finished spool Dimensions up to
- 300mm Diameter x 300mm Length
- 500mm Diameter x 500mm Lengthr
